Considering a very simple finite state machine (FSM) such as a code lock which requires you to enter a 4-digit numeric code and upon which will open the lock for a brief few seconds.

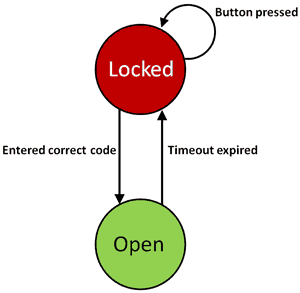

Such a FSM have two states: Locked and Open.
Every time a key is entered it checks the sequence of digits inputted so far and if the sequence does not match the secret code then it stays in the Locked state.
If the input sequence matches the length of the secret code then the user is judged to have entered an incorrect sequence and the input sequence is reset.
If, on the other hand, the user has entered the correct code then the FSM will change to the Open state for a number of seconds before reverting back to the Locked state.
This post is intended to show you how you can implement this FSM easily using F#’s agent and Erlang OTP’s gen_fsm behaviour.
F#
First, let’s define the different states that our FSM can be in:
and then the messages that our agent can receive:
The actual FSM implementation looks like this:
| namespace Fsm | |
| open System | |
| open System.Threading | |
| open FSharp.Control | |
| type State = | Locked of int list | |
| | Open | |
| | Closed | |
| type Message = | Button of int | |
| | Close of AsyncReplyChannel<unit> | |
| | GetState of AsyncReplyChannel<State> | |
| type CodeLock (code : int list) = | |
| let code = code |> List.rev | |
| let doUnlock () = printfn "The code lock is now unlocked" | |
| let doLock () = printfn "The code lock is now locked" | |
| let doCleanUp () = printfn "The code lock is now terminated..." | |
| let cts = new CancellationTokenSource() | |
| let agent = Agent<Message>.Start((fun inbox -> | |
| let rec lockedState (soFar : int list) = | |
| async { | |
| let! msg = inbox.Receive() | |
| match msg with | |
| | Button(digit) when soFar.Length < code.Length - 1 | |
| -> return! lockedState (digit::soFar) | |
| | Button(digit) when (digit::soFar) = code | |
| -> doUnlock() | |
| return! openState () | |
| | Button(digit) -> return! lockedState [] | |
| | GetState(reply) -> reply.Reply(Locked soFar) | |
| return! lockedState soFar | |
| | Close(reply) -> doCleanUp() | |
| reply.Reply() | |
| cts.Cancel() | |
| | _ -> return! lockedState soFar | |
| } | |
| and openState () = | |
| async { | |
| try | |
| let! msg = inbox.Receive(3000) | |
| match msg with | |
| | GetState(reply) | |
| -> reply.Reply(Open) | |
| return! openState() | |
| | Close(reply) | |
| -> doCleanUp() | |
| reply.Reply() | |
| cts.Cancel() | |
| | _ -> return! openState() | |
| with | |
| | :? TimeoutException -> doLock() | |
| return! lockedState [] | |
| } | |
| lockedState []), cancellationToken = cts.Token) | |
| member this.Button digit = agent.Post <| Button(digit) | |
| member this.GetState () = | |
| try | |
| agent.PostAndReply(GetState, 1000) | |
| with | |
| | :? TimeoutException -> Closed | |
| member this.Close () = agent.PostAndReply Close |
by This implementation is pretty straight forward, I’ve used a similar technique to the one Tomas Petricek used in his BlockingQueueAgent implementation and represented the different states using recursive functions.
One caveat with this FSM is the need to revert back to the Locked state after being in the Open state for a certain amount of time. For simplicity sake, I’ve simply specified a timeout (3 seconds) when waiting for messages in the Open state and use the TimeoutException as cue to go back to the Locked state. The obvious downside to my implementation here is that if a GetState message is received it will reset the timer!
You can fix this easily enough in a number of ways, including using a mutable instance variable to keep track of the current state and let the async lambdas modify it during state changes and transitions, then the GetState() method would no longer need to trouble the agent to find out what the current state is.
Erlang
Erlang’s OTP framework provide a gen_fsm behaviour which you can use to implement a FSM, which will take care of most of the plumbing and orchestration for you leaving you free to focus on the important things – handling the different ‘events’ that can be triggered during different states.
| %% Description: A simple FSM for a code lock with three states | |
| %% based on an example from the OTP system documentation | |
| -module(code_lock_fsm). | |
| -behaviour(gen_fsm). | |
| %% public API functions | |
| -export([start_link/1, stop/0, button/1, reset/0, get_state/0]). | |
| %% state names | |
| -export([locked/2, locked/3, open/2, open/3]). | |
| %% gen_fsm callback functions | |
| -export([init/1, handle_event/3, handle_sync_event/4, terminate/3]). | |
| %%% API functions | |
| %% gen_fsm:start_link will spawn and register new process and register it | |
| %% so that it's locally known as code_lock | |
| %% it'll then call the init/1 function in the callback module (2nd param) | |
| %% with the argument (3rd param) | |
| start_link(Code) -> | |
| gen_fsm:start_link({local, code_lock}, ?MODULE, Code, []). | |
| %% this callback function is called by gen_fsm:start_link above if | |
| %% registration was successful | |
| %% this function is expected to return { ok, StateName, StateData } | |
| %% where StateName is the initial state - locked with initial state | |
| %% data being the tuple { [], lists:reverse(Code) } | |
| %% note: the Code needs to be reversed so that [1, 2, 3, 4] can be entered | |
| %% as 1, 2, 3, 4 as opposed to 4, 3, 2, 1 because of the way the inputs | |
| %% list is built up in the locked state | |
| init(Code) -> | |
| { ok, locked, { [], lists:reverse(Code) } }. | |
| get_state() -> | |
| try | |
| gen_fsm:sync_send_event(code_lock, get_state) | |
| catch | |
| exit : { noproc, _ } -> closed | |
| end. | |
| %% sends a 'button' event to the FSM registered as code_lock, when the event | |
| %% is received by the FSM, gen_fsm calls StateName(Event, StateData) | |
| %% which is expected to return { next_state, NextStateName, NextStateData } | |
| %% where NextStateName is the next state to move into and NextStateData is | |
| %% the new state data for gen_fsm | |
| button(Digit) -> | |
| gen_fsm:send_event(code_lock, { button, Digit }). | |
| %% this callback function is called when the FSM is in the 'locked' state | |
| %% and the 'button' event is fired | |
| locked({ button, Digit }, { SoFar, Code }) -> | |
| case [Digit|SoFar] of | |
| Code -> | |
| % if the new digit completes a sequence that matches the code then | |
| % unlocks the lock | |
| do_unlock(), | |
| % after the time out (3 seconds) has expired, the callback function | |
| % StateName(timeout, StateData) is called, which in this calls | |
| % will be open(timeout, { [], Code }) | |
| { next_state, open, { [], Code }, 3000 }; | |
| Incomplete when length(Incomplete) < length(Code) -> | |
| % if the new digit does not add to a sequence that matches the | |
| % length of the code then stay in the 'locked' state but update | |
| % the state data to include the new digit | |
| { next_state, locked, { Incomplete, Code } }; | |
| _Wrong -> | |
| % the sequence now matches the code but it's wrong, stay in 'locked' | |
| % state and clear the digits entered so far | |
| { next_state, locked, { [], Code } } | |
| end; | |
| locked(Event, State) -> | |
| io:format("Unexpected event received in locked state : ~p", [Event]), | |
| { next_state, locked, State }. | |
| locked(get_state, _From, State = { SoFar, _ }) -> | |
| { reply, { locked, SoFar }, locked, State }. | |
| open(timeout, State) -> | |
| % after timeout expires in the 'open' state, go into 'locked' state again | |
| do_lock(), | |
| { next_state, locked, State }. | |
| open(get_state, _From, State) -> | |
| { reply, open, open, State, 3000 }. | |
| %% gen_fsm:sync_send_all_state_event fires an event to the FSM regardless of | |
| %% its state and can be handled with a handle_event/3 function defined in the | |
| %% callback module | |
| stop() -> | |
| gen_fsm:sync_send_all_state_event(code_lock, stop). | |
| reset() -> | |
| gen_fsm:send_all_state_event(code_lock, reset). | |
| handle_event(stop, _StateName, State) -> | |
| { stop, normal, State }; | |
| handle_event(reset, _StateName, { _, Code }) -> | |
| { next_state, locked, { [], Code } }. | |
| handle_sync_event(stop, _From, _StateName, State) -> | |
| { stop, normal, State }; | |
| handle_sync_event(reset, _From, _StateName, { _, Code }) -> | |
| { next_state, locked, { [], Code } }; | |
| handle_sync_event(get_state, _From, StateName, State) -> | |
| { reply, { StateName, State }, StateName, State }. | |
| terminate(normal, _StateName, _State) -> | |
| do_clean_up(), | |
| ok; | |
| terminate(shutdown, _StateName, _State) -> | |
| do_clean_up(), | |
| ok. | |
| %%% Private functions | |
| do_unlock() -> | |
| io:format("The code lock is now unlocked~n"). | |
| do_lock() -> | |
| io:format("The code lock is now locked~n"). | |
| do_clean_up() -> | |
| io:format("The code lock is now termianted...~n"). |
This Erlang implementation might look much bigger than its F# counterpart but keep in mind that I’ve included plenty of comments here and not been as conservative with write spaces as I was with the F# code. All and all, both versions require roughly the same number of LOC, the main difference being the lack of plumbing in the Erlang version, which if I have to be honest, can be confusing if you don’t have a decent understanding of how the gen_fsm behaviour works!
You can download and play around with the full source code (with corresponding tests for each implementation) from Github here. Enjoy!
