I never fully recovered my workspace setup when I upgraded my laptop two years ago, and I still miss things today. If only I had known about Gitpod back then…
If you’re not familiar with how cold start works within the context of AWS Lambda, then read this post first.
update 24/03/2019: the tests include WebPack as well.
When a Node.js Lambda function cold starts, a number of things happen:
- the Lambda service has to find a server with enough capacity to host the new container
- the new container is initialized
- the Node.js runtime is initialized
- your handler module is initialized, which includes initializing any global variables and functions you declare outside the handler function

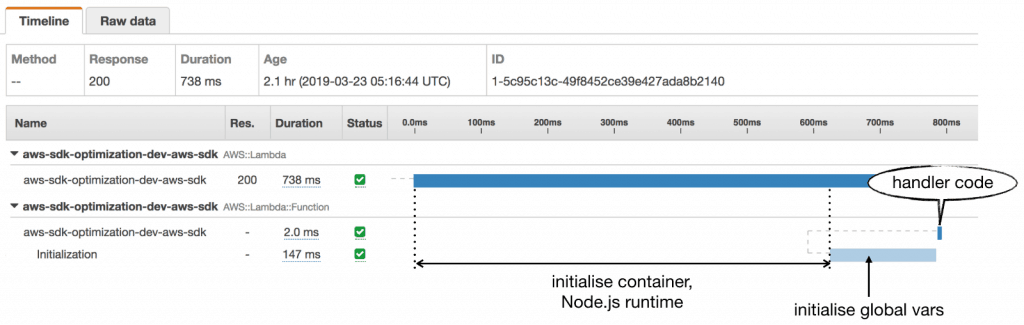

If you enable active tracing for a Lambda function, you will be able to see how much time is spent on these steps in X-Ray. Unfortunately, the time it takes to initialize the container and the Node.js runtime are not recorded as segments. But you can work out from the difference in durations.
Here, Initialization
refers to the time it takes to initialize the handler module.

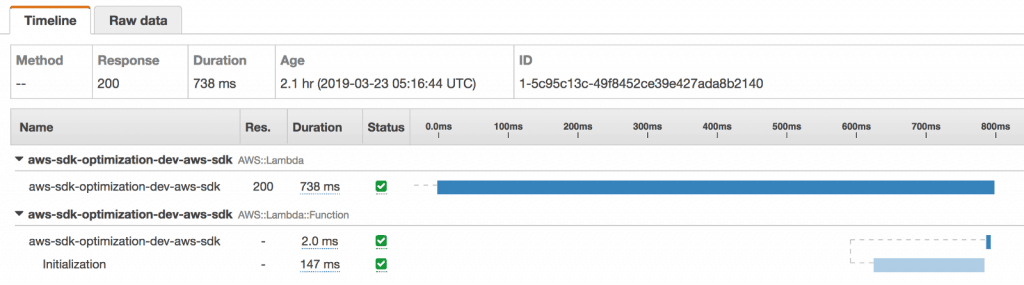

The above trace is for the function below, which requires the AWS SDK and nothing else. As you can see, this simple require
added 147ms to the cold start.
const AWS = require('aws-sdk') module.exports.handler = async () => { }
Consider this the cost of doing business when your function needs to interact with AWS resources. But, if you only need to interact with one service (e.g. DynamoDB), you can save some initialization time with this one-liner.
const DynamoDB = require('aws-sdk/clients/dynamodb') const documentClient = new DynamoDB.DocumentClient()

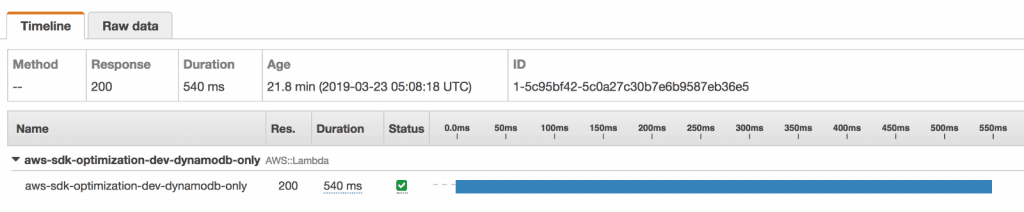

It requires the DynamoDB client directly without initializing the whole AWS SDK. I ran an experiment to see how much cold start time you can save with this simple change.
Credit goes to my colleague Justin Caldicott for piquing my interest and doing a lot of the initial analysis.
In addition to the AWS SDK, we often require the XRay SDK too and use it to auto-instrument the AWS SDK. Unfortunately, the aws-xray-sdk
package also has some additional baggages that we don’t need. By default it supports Express.js apps, MySQL and Postgres. If you are only interested in instrumenting the AWS SDK and http
/https
modules then you only need the aws-xray-sdk-core
.
Methodology
I tested a number of configurations:
- no AWS SDK
- requiring only the DynamoDB client
- requiring the full AWS SDK
- requiring the XRay SDK only (no AWS SDK)
- requiring the XRay SDK and instrumenting the AWS SDK
- requiring the XRay SDK Core and instrumenting the AWS SDK
- requiring the XRay SDK Core and instrumenting only the DynamoDB client
Each of these functions are traced by X-Ray. Sample rate set to 100% so we don’t miss anything. We are only interested in the duration of the Initialization segment as it corresponds to the time for initializing these dependencies.
The no AWS SDK
case is our control group. We can see how much time each additional dependency adds to our Initialization
duration.

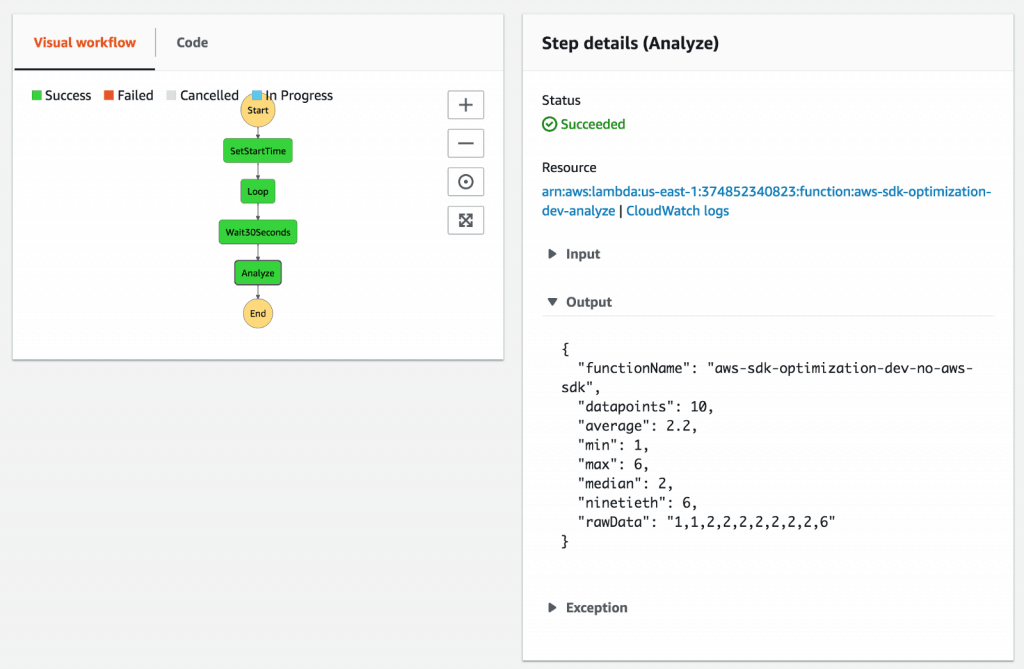

To collect a statistically significant sample set of data, I decided to automate the process using Step Functions.
- The state machine takes an input
{ functionName, count }
. - The
SetStartTime
step adds the current UTC timestamp to the execution state. This is necessary as we need the start time of the experiment to fetch the relevant traces from X-Ray. - The
Loop

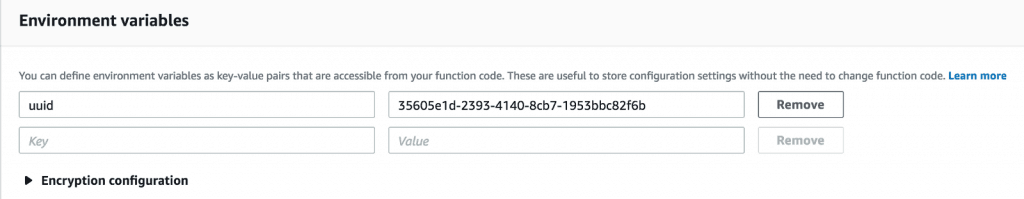

step triggers the desired number of cold starts for the specified function. To trigger cold starts, I programmatically updates an environment variable before invoking the function. That way, I ensure that every invocation is a cold start.
- The
Wait30Seconds
step makes sure that all the traces are published to XRay before we attempt to analyze them. - The
Analyze
step fetches all the relevant traces in XRay and outputs several statistics around theInitialization
duration.
Each configuration is tested over 1000 cold starts. Occasionally the XRay traces are incomplete (see below). These incomplete traces are excluded in the Analyze
step.
Each configuration is also tested with WebPack as well (using the serverless-webpack plugin). Thanks to Erez Rokah for the suggestion in the comments.
The Results

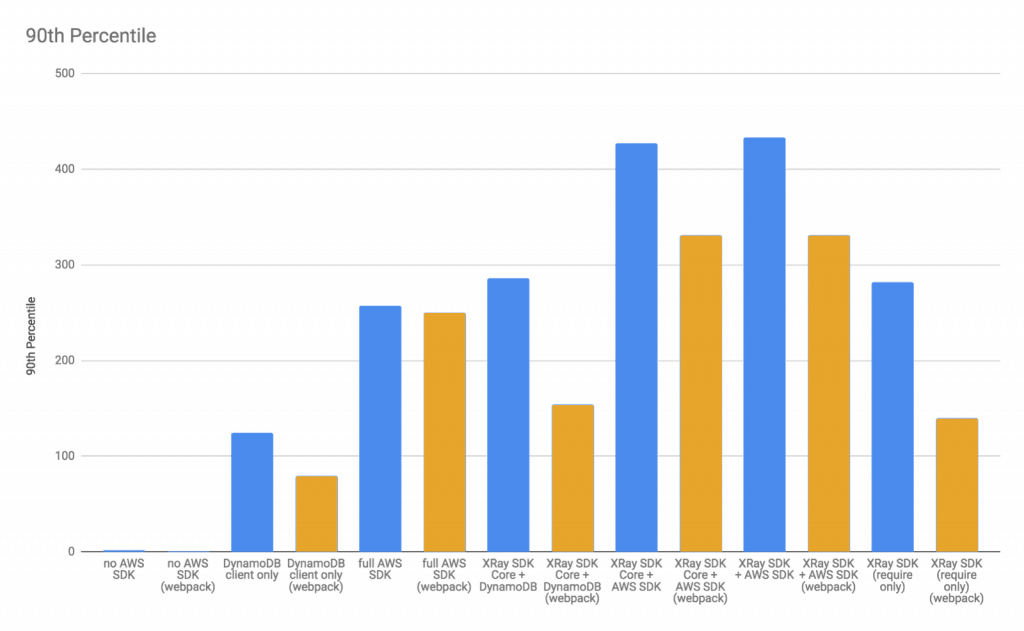

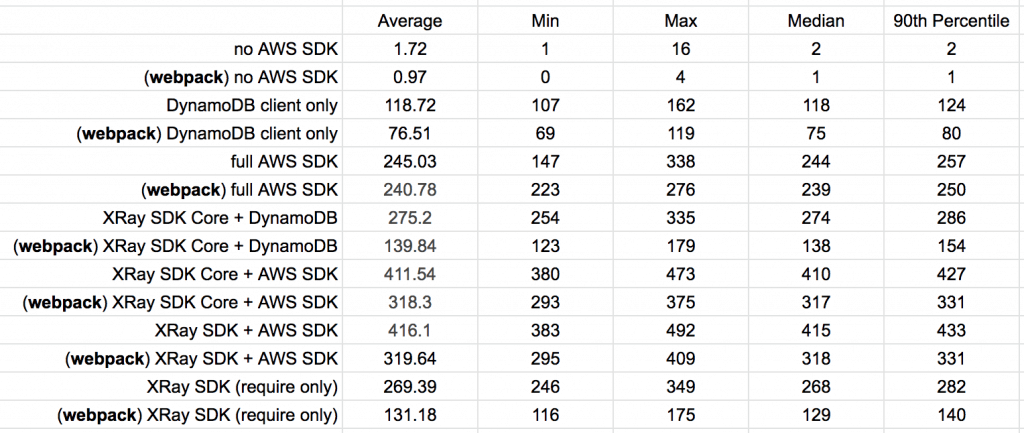

These are the Initialization
time for all the test cases.
Key observations:
- WebPack improves the
Initialization
time across the board. - Without any dependencies,
Initialization
time averages only 1.72ms without WebPack and 0.97ms with WebPack. - Adding AWS SDK as the only dependency adds an average of 245ms without WebPack. This is fairly significant. Adding WebPack doesn’t improve things significantly either.
- Requiring only the DynamoDB client (the one-liner change discussed earlier) saves up to 176ms! In 90% of the cases, the saving was over 130ms. With WebPack, the saving is even more dramatic.
- The cost of requiring the XRay SDK is about the same as AWS SDK.
- There’s no statistically significant difference between using the full XRay SDK and XRay SDK Core. With or without WebPack.
