Last time out we imple­mented the Dragon Curve exam­ple from the L-System wikipedia page. Now, we’re finally at the end of our journey, let’s see how we can implement the Fractal Plant example in Elm.



Example 7 : Fractal Plant

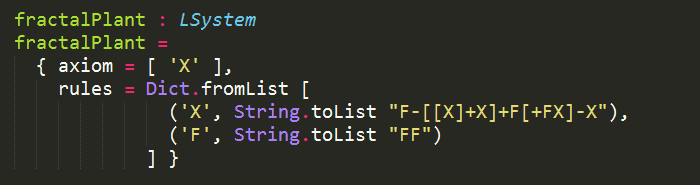

Let’s start by defining our L-System:


What’s interesting about the Fractal Plant is that it combines elements from Pythagoras Tree (the use of a stack) and other L-Systems we looked at recently.




Here’s how it looks, by gen 7 the plant looks pretty good!

fractal_plant

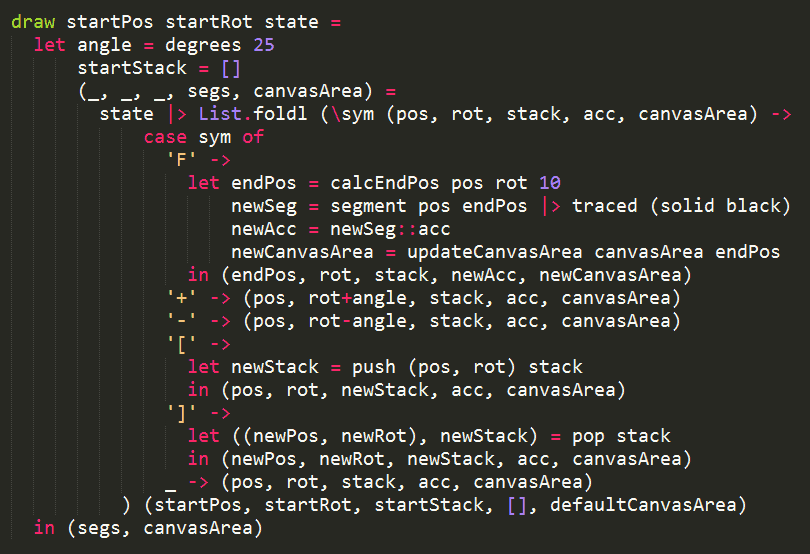

In fact, with the implementation we ended up with, we can use it to support any number of L-Systems so long:

  • ‘F’ is the only symbol that means “draw forward”
  • we can programmatically change the angle for ‘–’ and ‘+’ (easy!)

with that, let’s take a couple of the examples from LSystemBot’s tweets and see them in action!

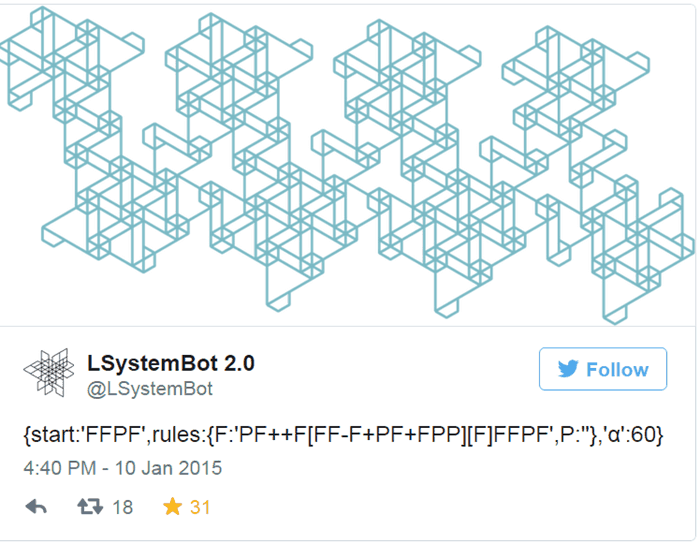

Example 7.1




l-system-bot-01



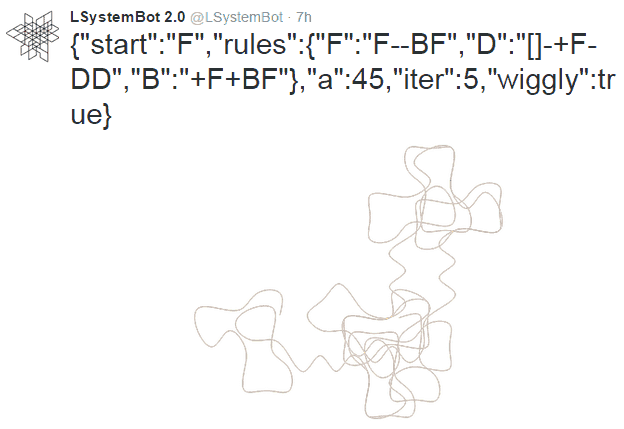

Example 7.2


l-system-bot-02

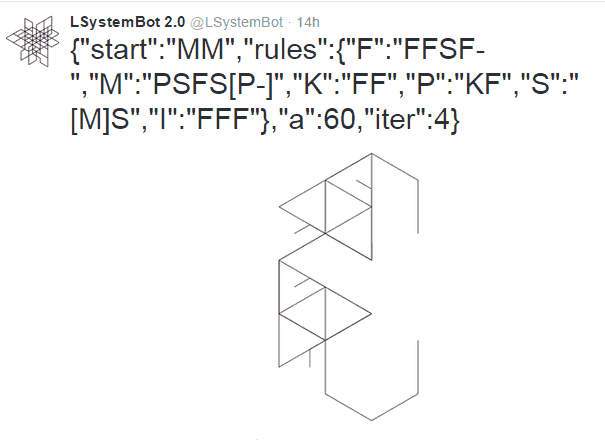

Example 7.3


l-system-bot-03



So that’s it guys, hope you’ve enjoyed this series! Please let me know via the comments if you like to see more mini-series like this one.



Live Demo (here)

Use LEFT and RIGHT arrow keys to evolve/devolve the L-System.

Source Code (here)
